| $13,000,000 | | |
| Status: | Available |
| Location: |
Mexico [View Map] |
| Reference: | SWBPS101S230 |
Description
DP-2
Specifications
| Vessel name: | TBN |
| Condition: | Well Maintained |

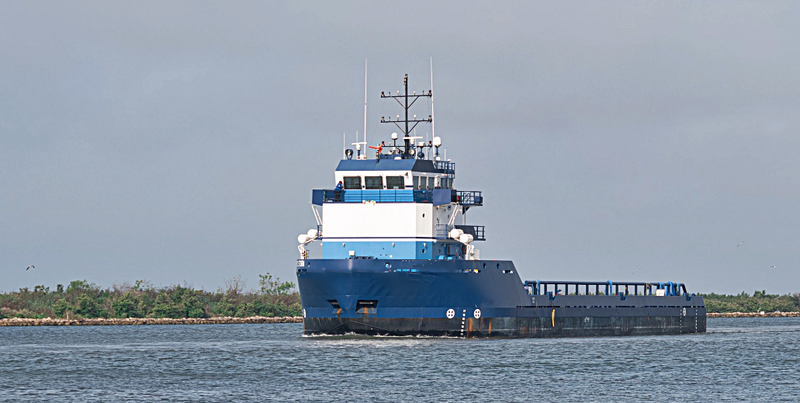

| Vessel type: | PSV |
| Designer: | USA |
| Builder: | USA Shipyard |
| Model: | PSV |
| Constructed: | 2010 |
| Registry: | Mexico |
| Class Society: | Subchapter L, SOLAS |
| Class Notation: | ABS †A1, †AMS, †DPS 2, Circle E |
| No. of engines: | 2 |
| Engine model: | Cummins |
| Engine power: | 4000 |
| Fuel type: | Diesel |
| Nominal length: | 230' |
| Length over all: | 70.1m |
| Beam: | 17m |

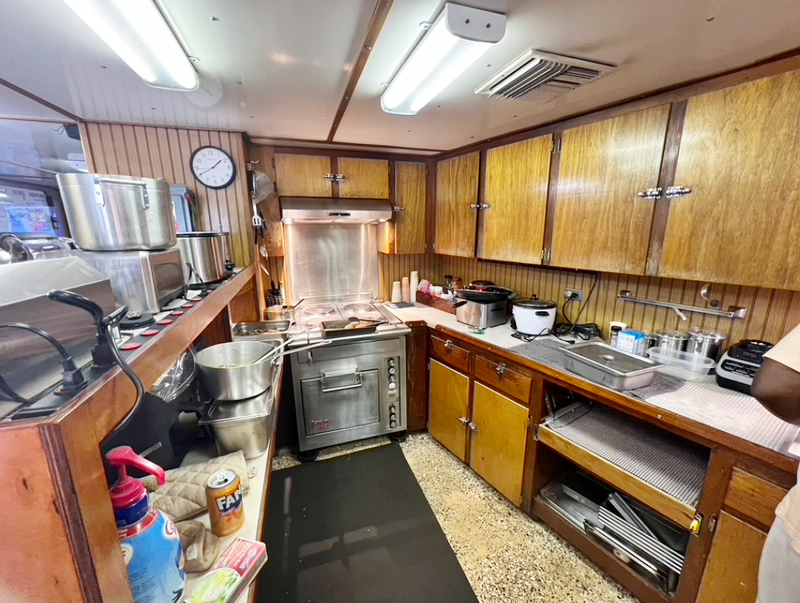

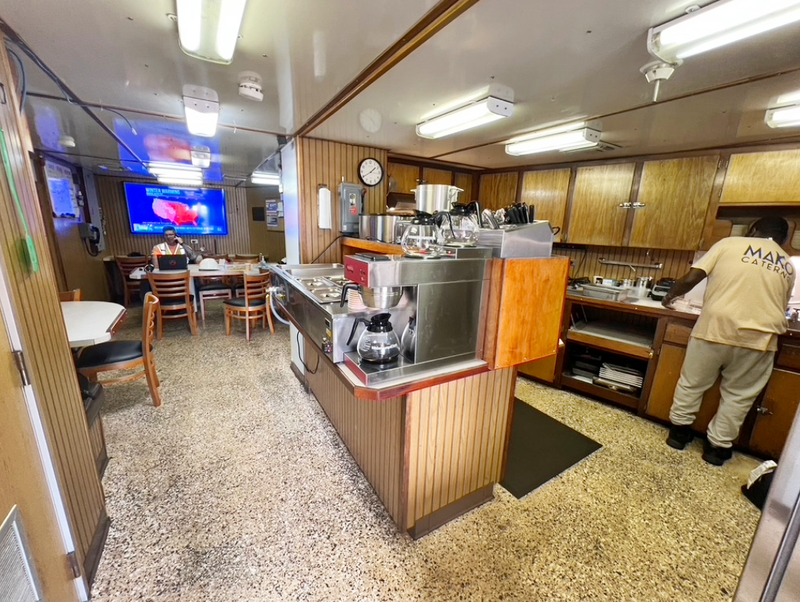

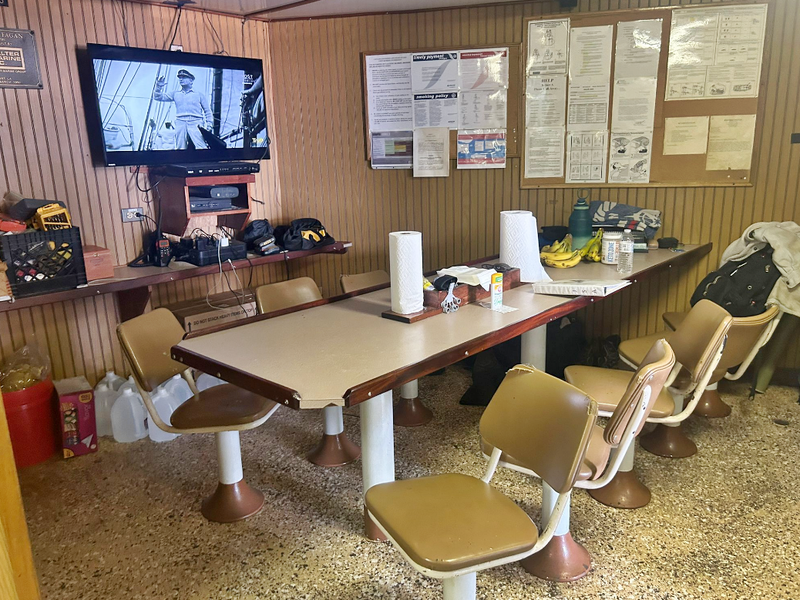

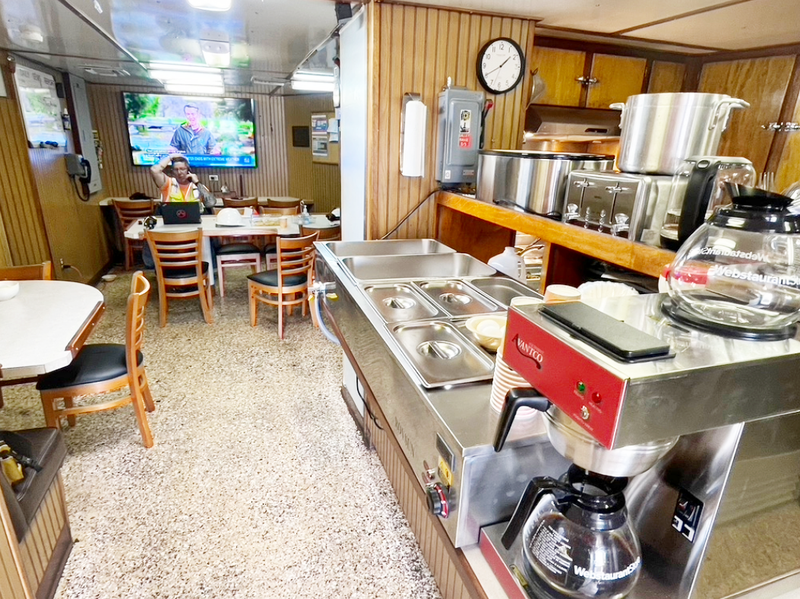

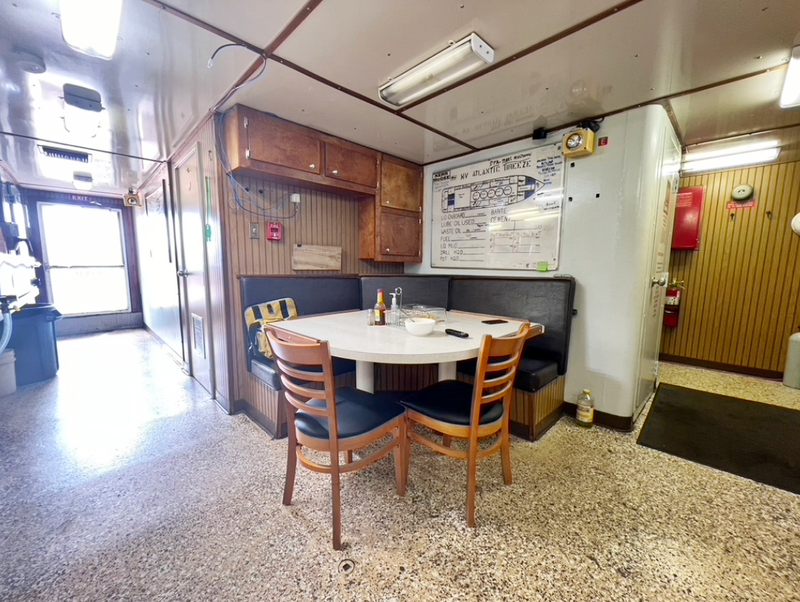

Accommodation
Construction
Cargo Deck Area: 150 ft x 47 ft // 45.7m x 14.3m
Total deck area: 7050 sq. ft.
655.3m
Engine(s)

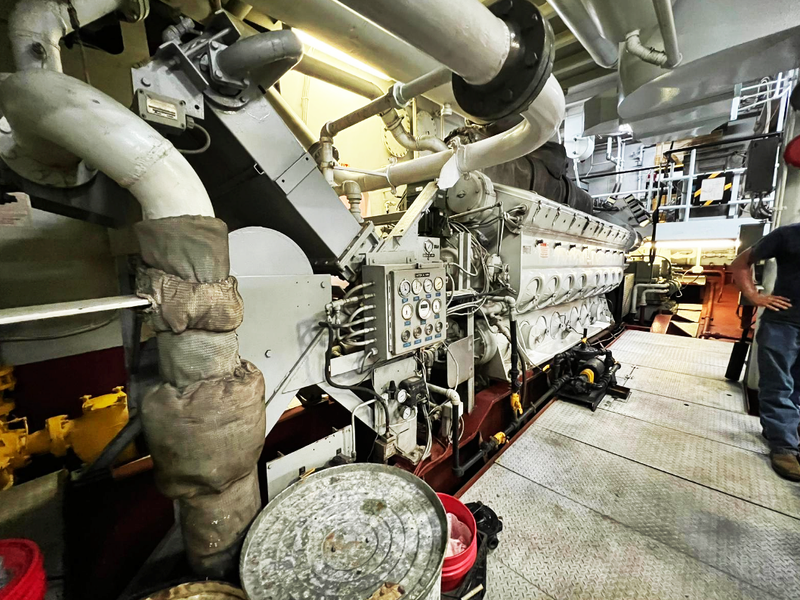

Main Engines: 2 x Cummins QSK60 Total Horsepower: BHP 4000
Propellers: FPP, 4 Blade Propeller Diameter: 81 in mm

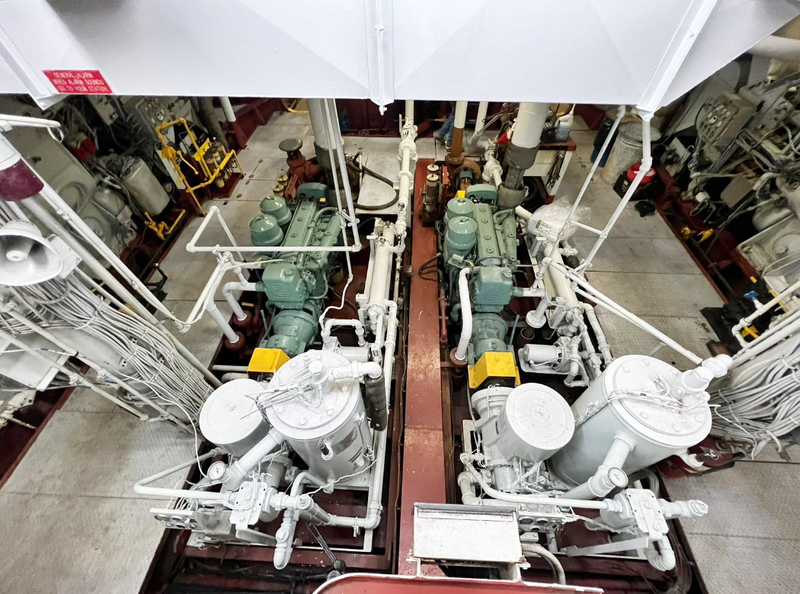

Main Generators: 3 x Cummins QSM11-DM Total Rating: kW 900
Bow Thrusters: 2 x CPP Schottel Total Horsepower: BHP 1500
Stern Thruster: 1 x FPP Schottel Total Horsepower: BHP 350
Rudders: Independent Steering, Becker, High-Lift
Power Generation: 480V/60Hz/3Phase
Disclaimer
Specifications are provided for general information only. We cannot guarantee the correctness of given information or be liable for any inaccuracy or warrant the condition of yachts. All dimensions, capacities, speeds etc. are approximate. All information given is subject to fair, wear and tear. We therefore recommend clients to have yachts, specifications and information thoroughly checked and surveyed for accuracy by an independent qualified marine surveyor and purchase only subject to satisfied survey and sea trial. Yachts are offered subject to still being for sale. Unless seller and purchaser have agreed this specification and information in signing in contract, we reserve the right to change specification, price etc. without prior notice. We are not responsible for the outcome of our publications and activities as result thereof.
